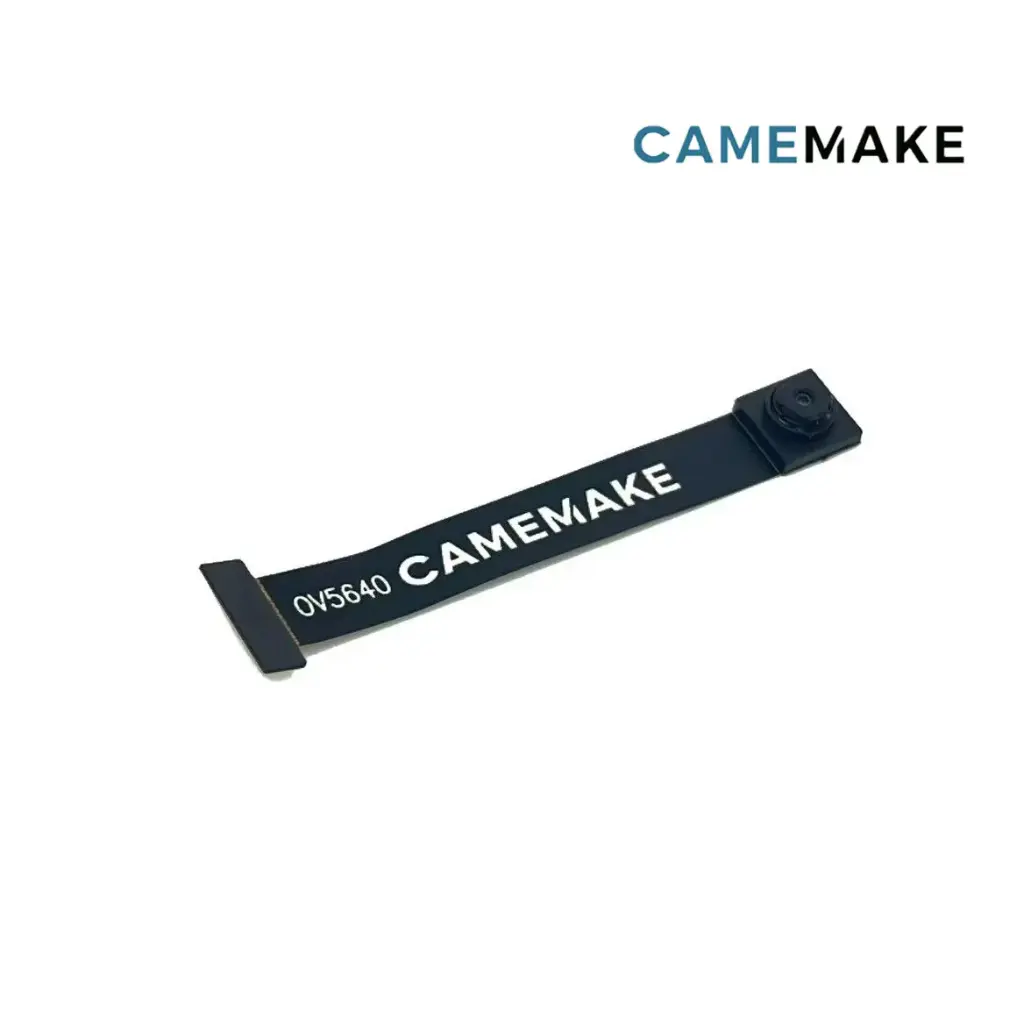

OV5640 DVP Camera Module - 5MP for MCUs
5MP OV5640 DVP 10-bit camera for STM32/NXP/ESP32-S3. YUV422, crisp 2592×1944, SCCB control, ideal for embedded vision and IoT cams.
Level up embedded vision with the OV5640 DVP 10-Bit Camera Module. This 5-megapixel, 1/4" sensor streams 10-bit parallel DVP directly on the header (D0–D9, PCLK, HREF/VSYNC, XCLK, SCCB/I²C), making it a perfect fit for MCUs and SoCs with a camera/parallel capture interface. You get sharp 2592×1944 stills, smooth video pipelines, and flexible output formats including YUV422
A compact lens (~3.0 mm EFL, FOV ≈ 72.2°/60.5°/47.4° D/H/V) delivers clean, natural images, while the sensor’s ISP features and proven ecosystem speed up bring-up on production hardware.
Why it stands out
True 10-bit DVP on the module pins for maximum fidelity (optional 8-bit modes supported in many stacks).
Flexible outputs: YUV422/420, RGB565/555/444, RAW 8/10-bit, JPEG.
Crisp 5MP imaging with robust controls via SCCB/I²C.
Designed for stable integration in IoT cams, vision sensors, robotics, kiosks, and smart access devices.
Key Specs
Sensor: OV5640, 5MP (2592×1944), 1/4", rolling shutter
Interface (module): DVP 10-bit (D0–D9, PCLK, HREF/VSYNC), XCLK, SCCB/I²C
Typical lens: ~3.0 mm EFL, FOV ≈ 72.2°/60.5°/47.4° D/H/V
Formats: YUV422
Compatible Hosts (examples)
STM32 with DCMI (F4/F7/H7, L4R/S)
NXP i.MX RT (CSI: RT10xx/11xx)
Renesas RZ/A, GD32F4x (DCMI-class), Kendryte K210/K230
ESP32-S2 / ESP32-S3
Linux-class SoCs with parallel CSI/DVP (e.g., Allwinner V-series, Ingenic, SigmaStar variants)
Drop it into your DVP pipeline for a modern, high-resolution upgrade that’s well supported and production-ready.
🔧 Fully Customizable to Your Needs
At Camemake, every camera module you see online is just the beginning. All our models can be custom-tailored to fit your project perfectly — from sensor type and lens options to housing, interface, and firmware. Whether you’re building for robotics, vision systems, or unique applications, we bring your vision to life.
📩 Request a Custom Quote OR Start your project
Let’s talk about your idea! Our team will guide you from concept to final delivery.
Need something off-the-shelf and ready to go? Our trusted global distribution partners stock our most popular modules.
💡 Not sure whether to choose custom or off-the-shelf? We’ll help you pick the most cost-effective option.
Our online prices are for prototyping & small orders. For bulk pricing, OEM, or custom projects, contact us for exclusive deals & expert support.
📩 Contact sales@camemake.com—let’s build your vision, one pixel at a time!
Disclaimer & Support Policy
All CameMake USB camera modules are fully compliant with UVC (USB Video Class) drivers, ensuring plug-and-play compatibility with all standard UVC-supported devices across Windows, macOS, Linux, and embedded platforms. For developers and integrators working with MIPI camera modules, selected MIPI drivers are available for download via our official CameMake GitHub repository. We continuously expand our online driver and documentation library to support a wider range of image sensors and platforms.
Please note: while we provide open access to resources, direct one-on-one technical support for driver integration is not included. For peer-to-peer assistance, tips, and best practices, join our growing CameMake Camera Community on Reddit, where engineers and makers share solutions, showcase projects, and contribute to open development.
Specifications
| Sensor Brand | Omnivision |
| Sensor model | OV5640 |
| Sensor Pixel Size | 1.4μm x 1.4μm |
| Sensor Shutter Type | Rolling |
| Lens DFOV | 72 |
| Lens HFOV | 60.5 |
| Lens VFOV | 47.4 |
| Lens mount size | M5.5×0.25 |
| Lens distortion | ≤ -2% |
| Connection Type | DVP |
| Codec | YUV422 |
