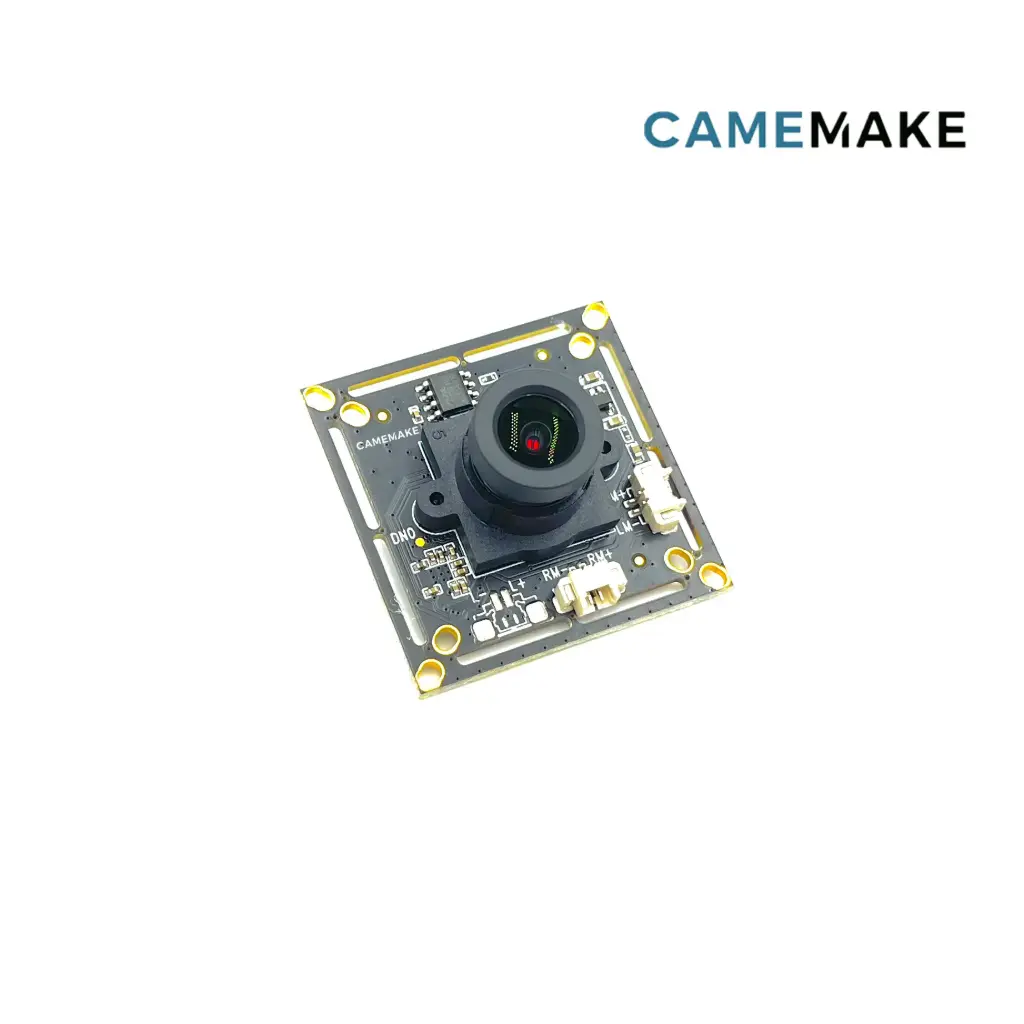

Full HD USB Camera with Galaxycore GC2093 Sensor
Full HD Camera for Access Control & Automation
At Camemake, every camera module we offer online is just the beginning. Our listed models represent a small selection of what we can provide, all camera modules are fully customizable to meet your specific project or product requirements. From sensor type and lens options to interface, housing, and firmware, we tailor each solution to fit your application perfectly.
The prices shown in our webshop reflect low-volume pricing intended for evaluation and prototyping. For bulk orders, OEM integration, or project-based customization, we offer competitive volume pricing and professional support.
👉 For inquiries, technical consultation, or customized orders, please contact our sales team at sales@camemake.com. We're here to build your vision, one pixel at a time.
Specifications
| Sensor Brand | Galaxycore |
| Sensor Size | 1/2.9" |
| Sensor model | GC2093 |
| Sensor Pixel Size | 2.8 μm x 2.8 μm |
| Sensor resolution | 1920 x 1080 |
| Sensor Shutter Type | Rolling |
| ISP Microphone Support | yes |
| Auto Focus VCM | yes |
| Lens Type | Normal |
| Lens DFOV | 86 |
| Lens HFOV | 77 |
| Lens VFOV | 49 |
| Lens mount size | M12 x 0.5 |
| Lens distortion | ≤ 1.0% |
| PCB Size | 38 x 38 mm |
| Connection Type | USB-UVC |
| Codec | YUY2 / MJPEG |
