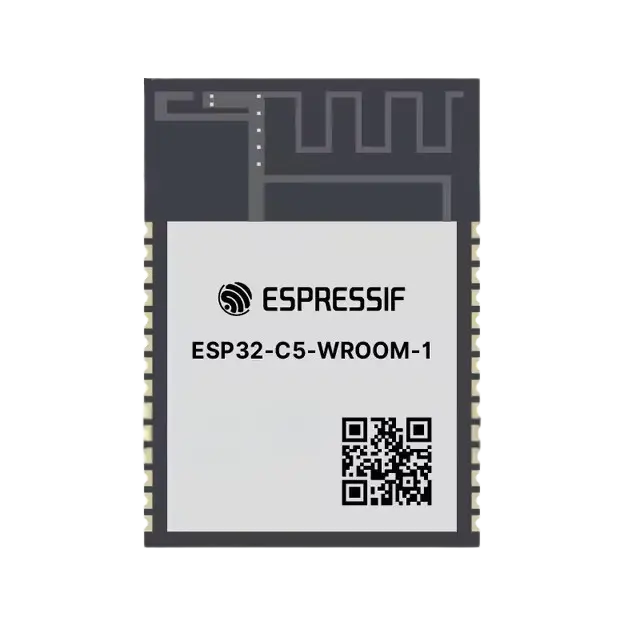

Camemake CM_ESP32-C5-WROOM-1-N8R8 | ESP32-C5 Wi-Fi 6 Dual-Band (2.4/5 GHz) + Bluetooth 5 LE + Zigbee / Thread | 8MB Flash + 8MB PSRAM | RISC-V 240 MHz Module
Price breaks
| Sales Price Minimum Order Quantity 10 units | $ 5.47 per unit |
| Sales Price Minimum Order Quantity 1000 units | $ 4.13 per unit |
Minimum order: 10 units.
🔧 Fully Customizable to Your Needs
At Camemake, every camera module you see online is just the beginning. All our models can be custom-tailored to fit your project perfectly — from sensor type and lens options to housing, interface, and firmware. Whether you’re building for robotics, vision systems, or unique applications, we bring your vision to life.
📩 Request a Custom Quote OR Start your project
Let’s talk about your idea! Our team will guide you from concept to final delivery.
Need something off-the-shelf and ready to go? Our trusted global distribution partners stock our most popular modules.
💡 Not sure whether to choose custom or off-the-shelf? We’ll help you pick the most cost-effective option.
Our online prices are for prototyping & small orders. For bulk pricing, OEM, or custom projects, contact us for exclusive deals & expert support.
📩 Contact [email protected]—let’s build your vision, one pixel at a time!
Disclaimer & Support Policy
All CameMake USB camera modules are fully compliant with UVC (USB Video Class) drivers, ensuring plug-and-play compatibility with all standard UVC-supported devices across Windows, macOS, Linux, and embedded platforms. For developers and integrators working with MIPI camera modules, selected MIPI drivers are available for download via our official CameMake GitHub repository. We continuously expand our online driver and documentation library to support a wider range of image sensors and platforms.
Please note: while we provide open access to resources, direct one-on-one technical support for driver integration is not included. For peer-to-peer assistance, tips, and best practices, join our growing CameMake Camera Community on Reddit, where engineers and makers share solutions, showcase projects, and contribute to open development.
Documents
Specifications
| CPU | ESP32-C5 single-core 32-bit RISC-V. |
| RAM | 8 MB PSRAM on module |
| Temperature Range | -40~85°C |
| Display Outputs | PARLIO can stream parallel data out to an external display controller |
| Camera Inputs | DVP (parallel 8-bit) and SPI camera input are supported when the image sensor itself handles compression or encoding. There is no onboard CSI/ISP. The module ingests already-encoded frames from the camera module. |
| Audio Features | Integrated I2S interface |
| Wireless | Dual-band Wi-Fi 6 (2.4 GHz and 5 GHz). Bluetooth 5 LE. IEEE 802.15.4 for Thread and Zigbee. |
| USB ports | USB 2.0 full-speed device via USB Serial / JTAG. |
| Debug | USB Serial/JTAG |
| Power | Single 3.3 V rail. 3.0 V to 3.6 V valid. |
| Storage | 8 MB QSPI flash on module. 8 MB PSRAM for runtime. |
| Software Support | ESP-IDF. Wi-Fi 6 STA / SoftAP, BLE 5 LE, Thread, Zigbee. Used in CM_ESP_P4_C5 dev kit or standalone. |
