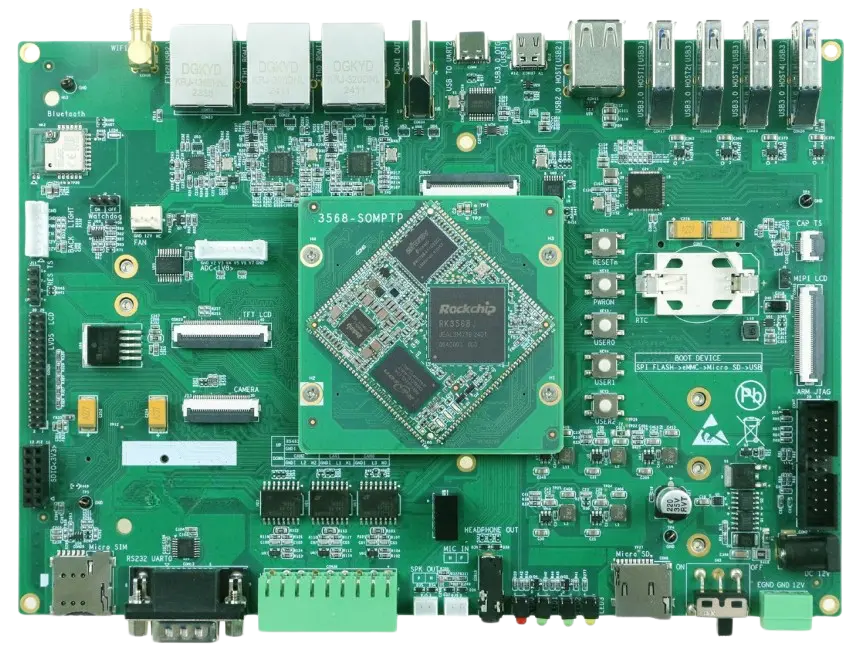

RK3568 Industrial Vision Board – Balanced Platform for Full HD Camera Projects
Balanced Rockchip Platform for Industrial Camera Projects Featuring the RK3568 SoC and Mali-G52 GPU
At Camemake, every camera module we offer online is just the beginning. Our listed models represent a small selection of what we can provide, all camera modules are fully customizable to meet your specific project or product requirements. From sensor type and lens options to interface, housing, and firmware, we tailor each solution to fit your application perfectly.
The prices shown in our webshop reflect low-volume pricing intended for evaluation and prototyping. For bulk orders, OEM integration, or project-based customization, we offer competitive volume pricing and professional support.
👉 For inquiries, technical consultation, or customized orders, please contact our sales team at sales@camemake.com. We're here to build your vision, one pixel at a time.
Specifications
| CPU | RK3568 (4xA55, up to 2.0GHz) |
| FPGA / Co-processor | None |
| GPU | Mali-G52 |
| NPU | 1 TOPS |
| RAM | 4GB LPDDR4X |
| eMMC | 32GB |
| Temperature Range | 0~80°C |
| Display Outputs | HDMI 2.0, eDP, LVDS, MIPI-DSI |
| Camera Inputs | MIPI-CSI |
| Audio Features | HP jack, mic, speaker |
| Ethernet | 2x GbE |
| Wireless | Wi-Fi + BT |
| USB ports | 2x USB3.0, 2x USB2.0, 1x USB-C (OTG) |
| PCIe / M.2 / SIM | PCIe 2.1, M.2 (NVMe), SIM (4G) |
| Debug | UART, JTAG |
| Power | 12V DC |
| Software Support | Android 11, Ubuntu 18.04, Buildroot, Debian, RTLinux |
