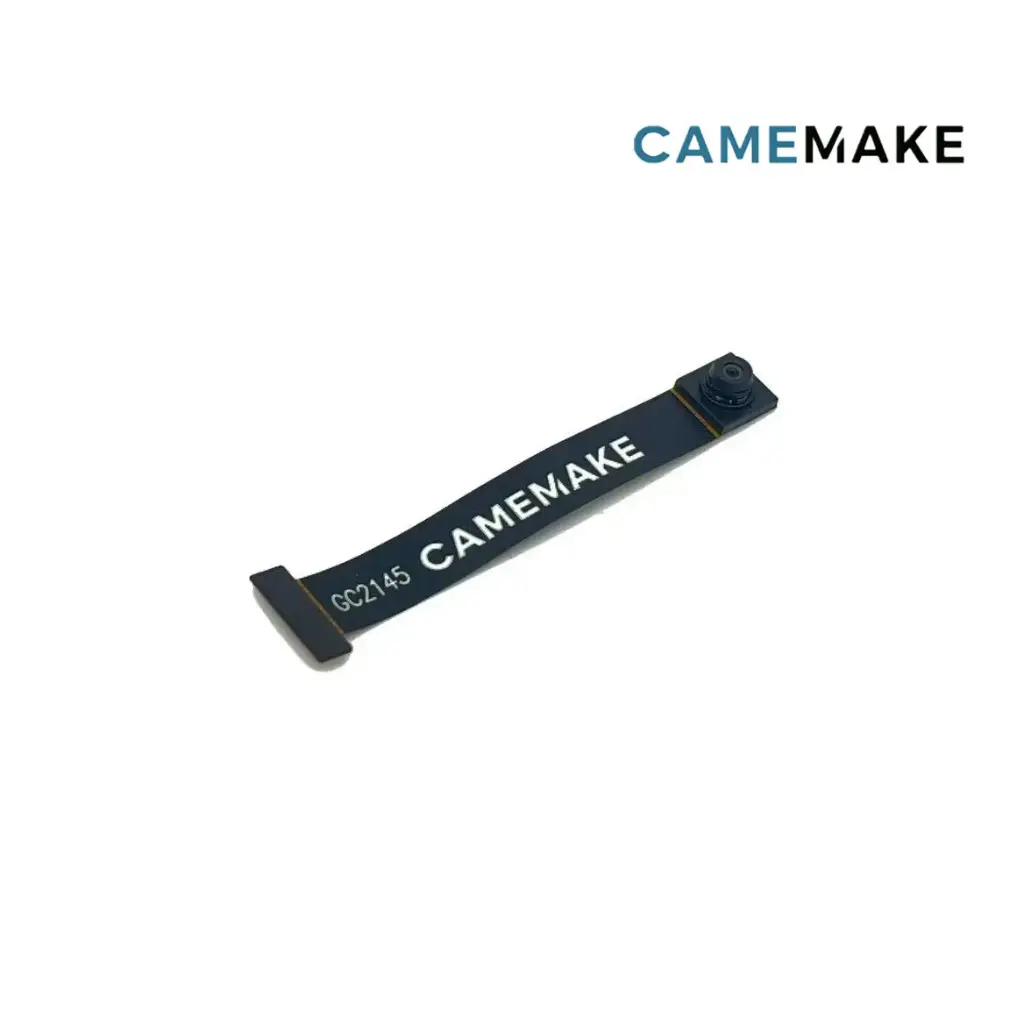

GC2145 DVP Camera Module - 2MP OV2640 Replacement
2MP GC2145 DVP camera for ESP32/STM32/RP2040. Crisp images, wide-FOV lens, YUV/RGB/RAW. A drop-in, better-looking alternative to the OV2640.
Upgrade legacy OV2640 builds with the GC2145 DVP Camera Module. This 2-megapixel, 1/5" sensor delivers clean, detailed images and drops straight into 8-bit DVP pipelines—perfect for ESP32/ESP32-S3, STM32 (DCMI), NXP i.MX RT, RP2040 (PIO), Kendryte K210, and more. A wide-angle lens (≈115°/95.8°/77° D/H/V, EFL ~1.407 mm) gives you roomy framing in tight spaces, while standard SCCB/I²C control keeps integration simple.
Why it’s a great OV2640 alternative
Better image quality in modern firmware stacks; stable color and sharpness.
True DVP 8-bit on the module pins (D0–D7, PCLK, HSYNC/VSYNC, XCLK).
Flexible outputs: YUV422, RGB565, RAW Bayer.
Compact optics for small enclosures; easy to focus and mount.
Key Specs
Sensor: GC2145, 2MP (UXGA), 1/5", rolling shutter, pixel 1.75 µm
Active array: up to 1600×1200 class (2MP)
Interface: DVP 8-bit + SCCB/I²C (module build)
Lens (included): wide FOV (≈115°/95.8°/77°), EFL ~1.407 mm
Outputs: YUV422
Compatible Hosts (examples)
ESP32 / ESP32-S2 / ESP32-S3, STM32F4/F7/H7 (DCMI), NXP i.MX RT10xx/11xx (CSI), RP2040 (PIO capture), Kendryte K210, Arduino Portenta H7 & GIGA (STM32H7), Renesas RZ/A, GD32F4x0, and other MCUs/SoCs with an 8-bit DVP or parallel capture path.
Add it to your ESP32-CAM-style projects, vision sensors, smart locks, badges, robots, or IoT cameras - a modern, better-looking drop-in for the discontinued OV2640.
🔧 Fully Customizable to Your Needs
At Camemake, every camera module you see online is just the beginning. All our models can be custom-tailored to fit your project perfectly — from sensor type and lens options to housing, interface, and firmware. Whether you’re building for robotics, vision systems, or unique applications, we bring your vision to life.
📩 Request a Custom Quote OR Start your project
Let’s talk about your idea! Our team will guide you from concept to final delivery.
Need something off-the-shelf and ready to go? Our trusted global distribution partners stock our most popular modules.
💡 Not sure whether to choose custom or off-the-shelf? We’ll help you pick the most cost-effective option.
Our online prices are for prototyping & small orders. For bulk pricing, OEM, or custom projects, contact us for exclusive deals & expert support.
📩 Contact sales@camemake.com—let’s build your vision, one pixel at a time!
Disclaimer & Support Policy
All CameMake USB camera modules are fully compliant with UVC (USB Video Class) drivers, ensuring plug-and-play compatibility with all standard UVC-supported devices across Windows, macOS, Linux, and embedded platforms. For developers and integrators working with MIPI camera modules, selected MIPI drivers are available for download via our official CameMake GitHub repository. We continuously expand our online driver and documentation library to support a wider range of image sensors and platforms.
Please note: while we provide open access to resources, direct one-on-one technical support for driver integration is not included. For peer-to-peer assistance, tips, and best practices, join our growing CameMake Camera Community on Reddit, where engineers and makers share solutions, showcase projects, and contribute to open development.
מפרט
| Sensor Brand | Galaxycore |
| Sensor model | GC2145 |
| Sensor Pixel Size | 1.75 x 1.75 |
| Sensor Shutter Type | Rolling |
| Lens DFOV | 115 |
| Lens HFOV | 95.8 |
| Lens VFOV | 77 |
| Lens mount size | M5.5×0.25 |
| Lens distortion | ≤ 12% |
| Connection Type | DVP |
| Codec | YUV422 |
